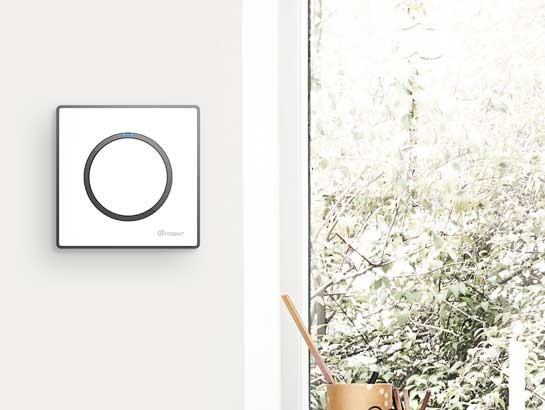

Smart Light Switch - Socket 86 - 1 Gang

Product Code: YO815

Color: Socket 86 - 1 Gang Smart Light Switch
  • US$54.90 US$59.90

Free Shipping Worldwide

Related Products

Full Demo Video


Real Product Demo

Installation Guide

Wireless Switch Market Overview

Brand

With Neutral Wire

Without Neutral Wire

One model avaliable 1 model supports dimmable LED, CFL, incandescent and halogen bulbs
On/Off / Dimmer Switch One model supports Incandescent Lights Only
Arteor / Belanko / Mallia N/A
N/A
GE Z-Wave Products One model supports Incandescent Lights Only
Decora® Digital / Decora® Rocker Slide / Renu® Vizia RF +®

Comparison (Without Neutral Wire)

Yoswit Smart Switch

LUTRON Caseta Wireless

GE Dimmer Switch

Leviton Incandescent Scene Capable Switch

INSTEON Dimmer Switch

Compatibility (Bulb Type)
Normal LED Not specific Not specific Not specific
Dimmable LED
Incandescent
CFL
Halogene bulbs
Magnetic Low-Voltage Not specific
Electronic Low-Voltage Not specific
Fluorescent lighting loads Not specific
Installation
Central Hub Not Required Required Required Required Required
Device Pairing Not Required Required Required Required Required
Cost
Price $54.90 - 69.90 $54.95 - 72.00 $56.99 $99.00 $49.99
Hub Price No Hub Required $59.95 - 80.00 $99.00 $99.00 $79.99
Specification
Technology Bluetooth Low Energy RF Bluetooth Low Energy Bluetooth Low Energy RF
Voltage 100 - 240V 120V 120V 120V 120V
Socket Type 55 / 86 / 118 / 120 120 Only 120 Only 120 Only 120 Only
Color 23 Colors 4 Colors White Only 3 Colors 6 Colors

Installation Guide

WARNING !

warning

Disconnect Power

To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.


Basic Installation

1

Remove the old switch and disconnect the wires, please make sure that there is about 5mm of bare wire exposing.

86_1g_step1

2

Insert a small, flat screwdriver in notches on wall plate and twist gently to pry from frame to remove wall plate.

86_1g_step2

3

Connect the wires to the switch case. Make sure that the wires are secure.

warning

Warning

To reduce risk of electrical shock, unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.


4

Fasten the switch on wall by placing the proper wall mount components.

86_1g_step4

5

Turn on the circuit breaker and connect to the power.


6

Test your switch by tapping 2 to 3 times. Your lights will be on/off.

86_1g_step6

7

Snap wall plate to frame. There are four click-stops for adjusting the fit of the wall plate to the switch and the wall.

86_1g_step7

Installation - LED Power Stabilizer (Optional)

1

After 2-wire (without neutral wire) wiring, in case you encountered conditions of circuit instability, lightings gleaming or no light, you may (i) adopt 3-wire (with neutral wire) wiring method, or (ii) place the power driver at two ends of any one lamp as the diagram below:

86_1g_step8

Installation complete.

Download the Yoswit App to your smart device and enjoy it now!

Yoswit will automatically detect the switch and add to your device list.

Download
Certification CE EMC CE LVD CE R&TTE FCC RoHS
User Manual Download
Data Sheet Download
Yoswit App
Yoswit App (Android Apk) Download
Control Lights and Electric Appliances from Anywhere with Smart Wall Switch

Full Featured




Intelligent Home Experience


Remote Control

Remote Control

Direct remote control lightings and appliances from your smartphone, no hub or router is needed.

Timer

Schedule Timers

Provide multiple recurring timers to automate your home, these timers are saved in Yoswit.

Scene Mode

Rooms and Scenes

Set a room to control all devices together or set a scene to push the preset mode with a simple click.

Away Detection

Away Detection

Sense your arrival and leaving and automate managing lightings, curtains, locks, and appliances.

Outside Home Remote Control

Mob-Mob Hub

A patented solution to connect your smart home wherever you are, even without wifi connection.

Password Protection

Password Protection

Set a password to prevent unpermitted control, simplify the setup with profile sharing.


On Off Switch App

Run Your Home from Your Phone

With the free Yoswit app, you can control your smart devices with a simple tap, and automate your home to react to your unique preferences.

You can easily customize Yoswit to work in new and different ways by using the App. Just set scenes for what you’d like your smart devices to do when you’re asleep, awake, gone, or back home, and Yoswit will do the rest.


  • Download From Google Play
  • Download From App Store
General
Product Name Yoswit Smart Light Switch
Model YO815
Revision V2
Compliance CE, FCC, RoHS
Manufacturer Designed by Yoswit in Hong Kong. Assembled in China.
Dimensions
Product Size

Front and Back View

Side View

Mechanical
Surface Materials V0 flame-resistant PC+ABS
Socket Type Socket 86
Storage Conditions -20°C to 60°C
Operating Environment Indoors
Operating Temperature Range -10°C to 40°C
Ingress Protection (IP) 20
Operating Humidity Range 0-90% relative humidity, non-condensing
Electrical
Input Voltage AC100-240V
Frequency 50/60Hz auto detected at power-up
Resistive Load Current Max 6A
Inductive Load Current Max 2A
Minimum Load Power 5 watt (*for 2-wire [without neutral wire] installation only)
Standby Power <0.1 watt
Wiring Options Wiring details available on the Installation page
Bluetooth
Product Compatibility Bluetooth Smart Ready products
Frequency 2.4GHz
Radio Transmission Power 0~5 dBm
Bluetooth Range Open area: >50m; indoor: 10-20m
Bluetooth Version Bluetooth 4.2
Package
Weight 176 g
What's in the Box
