Smart Light Bulb Adapter

Product Code: YO919

  • US$39.90 US$54.90

Free Shipping Worldwide

Related Products

Full Demo Video

WARNING !

warning

Disconnect Power

To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.


Basic Installation

1

Make sure the power is turned off.

remove_old_switch

2

Verify that your bulb are electrically rated to operate with the requirement as stated in the specification.


3

Remove your original light bulb.

remove_old_switch

4

Insert the Bulb Cap into the lamp holder.

remove_old_switch

5

Connect the bulb to the Bulb Holder.

remove_old_switch

6

Switch on the power of your lamp.

remove_old_switch

Change of Bulb Cap

1

Make sure the product is not connected to power.

remove_old_switch

2

Use one hand to press the Cap Lock button.

remove_old_switch

3

Use another hand to hold the cap and turn it anti-clockwise.

remove_old_switch

4

Open the Cap.

remove_old_switch

5

Proper align the appropriate Cap to the bottom of the Bulb Holder.

remove_old_switch

6

Hold the Cap and turn it clockwise until you hear a slap, which means the Bulb Cap is locked to the Bulb Holder.

remove_old_switch

Installation complete.

Download the Yoswit App to your smat device and enjoy it now!

Yoswit will automatically detect the switch and add to your device list.

Download
Certification CE EMC CE LVD CE R&TTE FCC RoHS
User Manual Download
Data Sheet Download
Leaflet Download
Yoswit App
Yoswit App (Android Apk) Download
Turn Your Lamp into Smart Lighting by Just Adding the Smart Bulb Converter


Plays Well with......


Three Changable Socket
Lamps
Dimmable

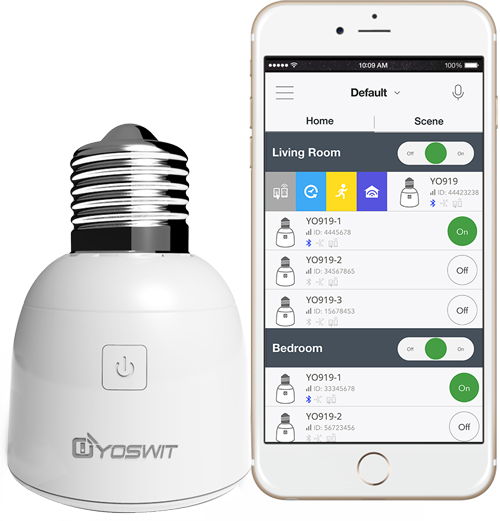

Bulb Converter App

Run Your Home from Your Phone

With the free Yoswit app, you can control your smart devices with a simple tap, and automate your home to react to your unique preferences.

You can easily customize Yoswit to work in new and different ways by using the App. Just set scenes for what you’d like your smart devices to do when you’re asleep, awake, gone, or back home, and Yoswit will do the rest.


  • Download From Google Play
  • Download From App Store



Intelligent Home Experience


Remote Control

Remote Control

Direct remote control lightings and appliances from your smartphone, no hub or router is needed.

Timer

Schedule Timers

Provide multiple recurring timers to automate your home, these timers are saved in Yoswit.

Scene Mode

Rooms and Scenes

Set a room to control all devices together or set a scene to push the preset mode with a simple click.

Away Detection

Away Detection

Sense your arrival and leaving and automate managing lightings, curtains, locks, and appliances.

Outside Home Remote Control

Mob-Mob Hub

A patented solution to connect your smart home wherever you are, even without wifi connection.

Password Protection

Password Protection

Set a password to prevent unpermitted control, simplify the setup with profile sharing.



General
Product Name Yoswit Smart Bulb Converter
Model YO919
Compliance CE, FCC, RoHS
Manufacturer Designed by Yoswit in Hong Kong. Assembled in China.
Dimensions
Product Size

Front and Back View

Mechanical
Surface Materials V0 flame-tesistant PBT+fiberglass
Operating Environment Indoor
Operating Temperature Range -10°C to 80°C
Operating Humidity Range 0-90% relative humidity, non-condensing
Electrical
Input Voltage AC100-240V
Frequency 60/50Hz auto detected at power-up
Resistive Load Current 60 watt
Inductive Load Current 60 watt
Standby Power <0.3 watt
Bluetooth
Product Compatibility Bluetooth Smart Ready products
Frequency 2.4GHz
Radio Transmission Power 0~4 dBm
Bluetooth Range Open area: >50m; indoor: 10-20m
Bluetooth Version Bluetooth 4.0
