Yoswit Smart Switch
- UK / EU
We support IOS 7.0 or above versions. Also, we have separate applications with different resolution for iPhone and iPad.
We support Android 4.3 or above versions. It's the first Android version with Bluetooth Smart support which has just been released on Aug 2013.

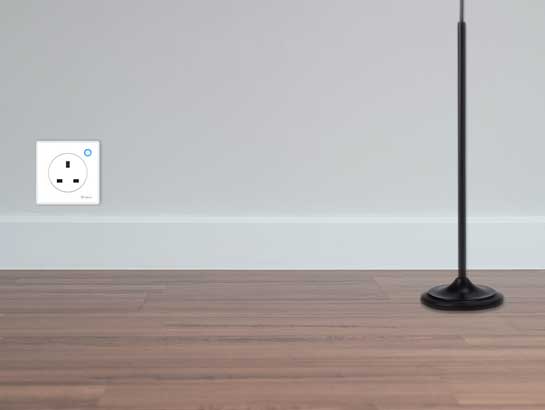

|Yoswit Smart Outlet
|CE, FCC, RoHS
|Designed by Yoswit in Hong Kong. Assembled in China.
|V0 flame-resistant PC +ABS
|-20°C to 60°C
|Operating Temperature Range
|-10°C to 40°C
|Ingress Protection (IP)
|50/60Hz Auto Detected at Power-Up
|Resistive Load Current
|Inductive Load Current
|Bluetooth Smart Ready products
|Radio Transmission Power
|Open area: >50m; indoor: 10-20m
To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.
Remove the old outlet and disconnect the wires, please make sure that there is about 5mm of bare wire exposing.
Insert a small, flat screwdriver in notches on wall plate and twist gently to pry from frame to remove wall plate.
Connect the wires to the outlet. Make sure that the wires are secure.
To reduce risk of electrical shock, unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.
Fasten the outlet on wall by placing the proper wall mount components.
Turn on the circuit breaker and connect to the power.
Test the outlet by tapping the power button of the outlet 2 to 3 times. The LED will be on/off.
Plug in your devices.
To reduce risk of electrical shock, please make sure the devices and the outlet are off.
Press the power button of the outlet and your devices on.
Download the Yoswit App to your smart device and enjoy it now!
|EMC LVD (BS1363, EN60669)
|Full Catalogue Catalogue (ZH)
|Yoswit App (Android Apk)
