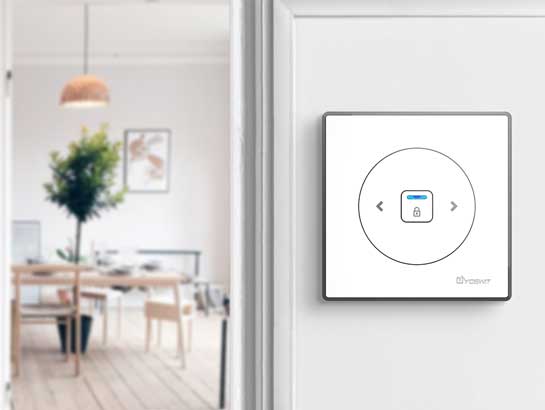

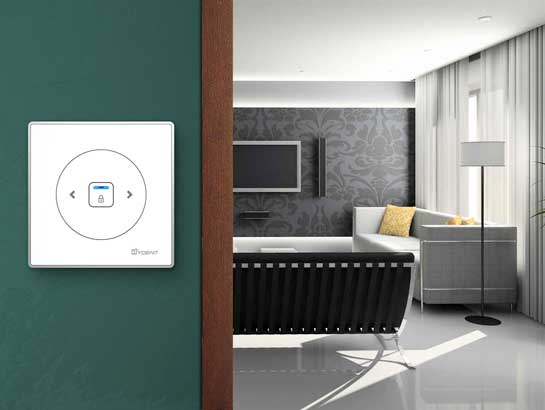

How Yoswit Smart Curtain Switch Works
Full Demo Video
Real Product Demo
Yoswit Smart Switch
- 55 / 86 / 118 / 120
- 55 / 86
- 1 Layer
- 55 / 86 / 120
- Zigbee / RF
Run Your Home from Your Phone
We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.
We support all Smart Ready products with our application installed. Please Click Here to get the growing list.
We support IOS 7.0 or above versions. Also, we have separate applications with different resolution for iPhone and iPad.
We support Android 4.3 or above versions. It's the first Android version with Bluetooth Smart support which has just been released on Aug 2013.
|Product Name||Yoswit Smart Curtain/Roller Switch|
|Compliance||CE, FCC, RoHS|
|Surface Materials||V0 flame-resistant PC+ABS|
|Socket Type||Socket 86|
|Storage Conditions||-20°C to 60°C|
|Operating Temperature Range||-10°C to 40°C|
|Ingress Protection (IP)||20|
|Operating Humidity Range||0-90% relative humidity, non-condensing|
|Frequency||50/60Hz auto detected at power-up|
|Minimum Load Power||5 watt (*for 2-wire [without neutral wire] installation only)|
|Standby Power||<0.1 watt|
|Wiring Options||Wiring details available on the Installation page|
|Product Compatibility||Bluetooth Smart Ready products|
|Radio Transmission Power||0~5 dBm|
|Bluetooth Range||Open area: >50m; indoor: 3-20m|
|Bluetooth Version||Bluetooth 4.2|
|What's in the Box|
To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.
Remove the old switch and disconnect the wires, please make sure that there is about 5mm of bare wire exposing.
Insert a small, flat screwdriver in notches on wall plate and twist gently to pry from frame to remove wall plate.
Connect the wires to the switch case. Make sure that the wires are secure
To reduce risk of electrical shock, unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.
For further details about the installation of motors, please refer to the user manual of curtain motor/roller motor.
Fasten the switch on wall by placing the proper wall mount components.
Turn on the circuit breaker and connect to the power.
Test your switch by pressing several times. Your curtain/roller will be pulled open/down or shut.
Snap wall plate to frame. There are four click-stops for adjusting the fit of the wall plate to the switch and the wall.
Download the Yoswit App to your smart device and enjoy it now!
Yoswit will automatically detect the switch and add to your device list.
