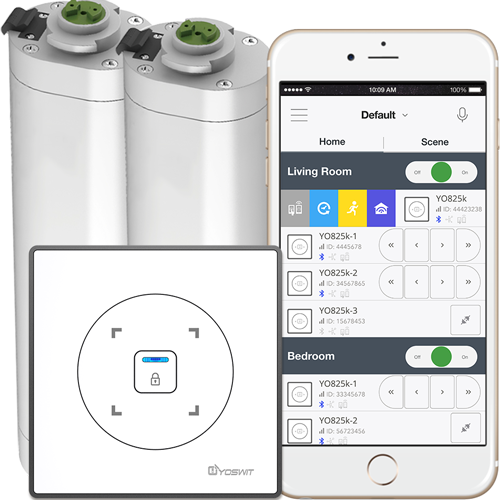

Smart Curtain - 2 Layers

Product Code: YS143&YS145

Switch Socket for Smart Curtain
Curtain track type

Related Products

Add Distinction to Your Living Space and Experience Convenience with Smart Curtain Kit

Life In Motion

Silent Design

Silent Design

Noise reduction design to ensure that the operating noise is below 40db.
Elegant Operation

Elegant Operation

Light open and light close function make the curtain movement smooth and elegant.
Memorlized Limit

Memorized Limit

No manual setting is required. The motor will automatically adjust the error to ensure that the track route is accurate.
Obstuction Detection

Obstruction Detection

You can pull the opening or closing curtain to stop it immediately.
Light Touch

Light Touch – Start

When pulling the curtain into one direction, the curtain will automatically run until totally open or close.
Manual Override

Manual Override

No matter energized or not. You can always open and close the curtain with traditional manual way.

Mid-limit function

Depending on the need of daylighting. A stop point can be setted to auto stop the curtain at certain point.
Long Lifetime

5-Year Motor Warranty

Special high strength motor, the system is tested by 15000 times without distortion. Our 5-Year warranty prove our confidence.
Curtain with switch


Full Demo Video

Real Product Demo


Yoswit Smart Switch

  • 55 / 86 / 118 / 120
  • Bluetooth

(ULTI Ezinstall3)

  • 55 / 86
  • RF


  • 1 Layer
  • 55 / 86 / 120
  • Zigbee / RF



Run Your Home from Your Phone

Mobile As Hub
Mobile As Hub
Voice Control
Voice Control
Mesh-like Network
Mesh-like Network
Remote Control
Remote Control
Room and Scenes
Away Detection
Away Detection
Schedule Timers
Schedule Timers
Password Protection
Password Protection

Bluetooth Version

We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.

Compatible Devices

We support all Smart Ready products with our application installed. Please Click Here to get the growing list.

IOS Support

We support IOS 7.0 or above versions. Also, we have separate applications with different resolution for iPhone and iPad.

Android Support

We support Android 4.3 or above versions. It's the first Android version with Bluetooth Smart support which has just been released on Aug 2013.

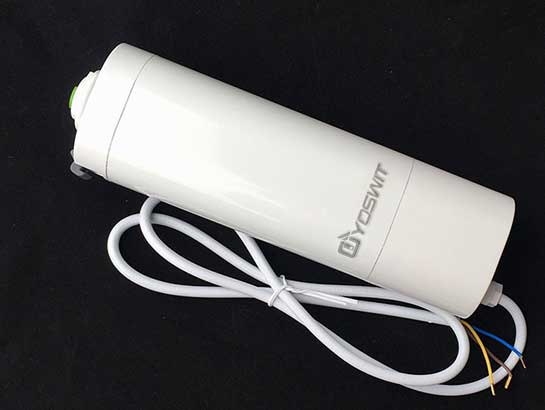

Product Name Yoswit Curtain Motor
Model YO1007CU
Manufacturer Designed by Yoswit in Hong Kong. Assembled in China.
Motor Technical Data
Safety Curtain Weight (kg) 75 (230V) / 75 (120V)
Open/Close Speed (cm/sec) 20cm (230V/50Hz) / 24cm (120V/60Hz) per second
Rated Current (A) 0.27 (230V) / 24 (120V)
Degree of Protection (IP) 20 (230V) / 20 (120V)
Maximum Turns (Turns) No limit
Rated Power (w) 121 (230V) / 107 (120V)
Running Time (min) 4 (230V) / 4 (120V)
Track Length (m) ≤12 (230V) / ≤12 (120V)
Weight (kg) 1.10 (230V) / 1.10 (120V)
Product Certificate TÜV, CCC, CE, RoHS (230V) / RoHS (120V)
Surface Materials V0 flame-resistant PC+ABS
Storage Conditions -20°C to 70°C
Operating Environment Indoors
Operating Temperature Range -10°C to 50°C
Operating Humidity Range 0-90% relative humidity, non-condensing
Input Voltage AC100-240V
Frequency 50/60Hz auto detected at power-up
Resistive Load Current Max 20A
Standby Power <0.3 watt
Wiring Options Wiring details available on the Installation page
Product Compatibility Bluetooth Smart Ready products
Frequency 2.4GHz
Radio Transmission Power 0~4 dBm
Bluetooth Range Open area: >50m;
Bluetooth Version Bluetooth 4.2



Disconnect Power

To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.

Basic Installation


Search for a proper position to install the curtain track.


Always install the curtain track horizontally on a flat surface.


Check the position of curtain brackets. The most appropriate distance for brackets is 2 pieces for every 1m track. Afterwards, add 1 piece for another 1m.


Length of curtain track should exceed the width of your window by 20-30 cm on each side, while distance between curtain brackets should not be greater than 50 cm.


Assemble the curtain brackets to the curtain track with screws. Mount the curtain track with curtain brackets to a flat ceiling.


The bearing capacity of the sum of screws must be at least 300kg.



Assemble the curtain motor by inserting it to the curtain track. Turn the curtain motor anti-clockwise. The motor will be locked in a fixed position automatically.



Disconnect the power supply of your switch. If you are installing Yoswit curtain switch, please refer to the user manual of Yoswit curtain/roller switch.


To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.


Connect the live, neutral and ground wires of motor to your switch.


To reduce risk of electrical shock, unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.

Circuit Installation A


Circuit Installation B



Turn on the circuit breaker and connect to the power.


Test the motorized curtain by tapping your switch for several times.


Automatic limit setting


Limit cancellation


Installation complete.

Download the Yoswit App to your smart device and enjoy it now!

Yoswit will automatically detect the switch and add to your device list.

Certification EMC
User Manual Motor 86 curtain 118 curtain
