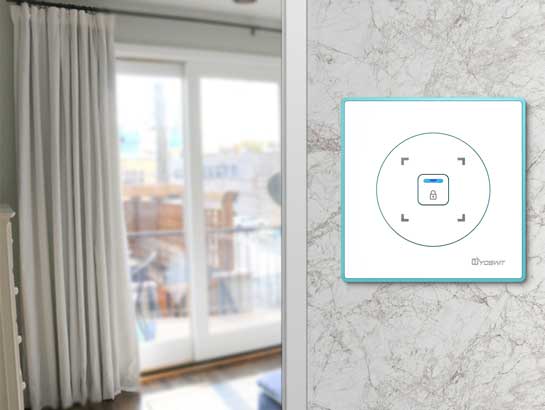

Smart Curtain Switch - Socket 86 - 2 Layer

Product Code: YO845k


Color: Socket 86 - 2 Layers Curtain Switch

Related Products

Add Distinction to Your Living Space and Experience Convenience with Smart Curtain Switch

How Yoswit Smart Curtain Switch Works

curtain-description-01

Features


Full Demo Video

Real Product Demo


Comparison

Yoswit Smart Switch

  • 55 / 86 / 118 / 120
  • Bluetooth

Schneider
(ULTI Ezinstall3)

  • 55 / 86
  • RF

Legrand
(Arteor/Adorne/Radiant)

  • 1 Layer
  • 55 / 86 / 120
  • Zigbee / RF

Leviton
(Decora)

LUTRON
(Caseta)


Run Your Home from Your Phone

Mobile As Hub
Mobile As Hub
Voice Control
Voice Control
Mesh-like Network
Mesh-like Network
Remote Control
Remote Control
Room and Scenes
Away Detection
Away Detection
Schedule Timers
Schedule Timers
Password Protection
Password Protection
IFTTT
IFTTT

Bluetooth Version

We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.

Compatible Devices

We support all Smart Ready products with our application installed. Please Click Here to get the growing list.

IOS Support

We support IOS 7.0 or above versions. Also, we have separate applications with different resolution for iPhone and iPad.

Android Support

We support Android 4.3 or above versions. It's the first Android version with Bluetooth Smart support which has just been released on Aug 2013.

General
Product Name Yoswit Smart Curtain/Roller Switch
Model YO845k
Revision V2
Compliance CE, FCC, RoHS
Manufacturer Designed by Yoswit in Hong Kong. Assembled in China.
Dimensions
Product Size

Front and Back View

Side View

Mechanical
Surface Materials V0 flame-resistant PC+ABS
Socket Type Socket 86
Storage Conditions -20°C to 60°C
Operating Environment Indoors
Operating Temperature Range -10°C to 40°C
Ingress Protection (IP) 20
Operating Humidity Range 0-90% relative humidity, non-condensing
Electrical
Input Voltage AC100-240V
Frequency 50/60Hz auto detected at power-up
Minimum Load Power 5 watt (*for 2-wire [without neutral wire] installation only)
Standby Power <0.1 watt
Wiring Options Wiring details available on the Installation page
Bluetooth
Product Compatibility Bluetooth Smart Ready products
Frequency 2.4GHz
Radio Transmission Power 0~5 dBm
Bluetooth Range Open area: >50m; indoor: 10-20m
Bluetooth Version Bluetooth 4.2
Package
Weight 220 g
What's in the Box

What is in the Box

Installation Guide

WARNING !

warning

Disconnect Power

To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.


Basic Installation

1

Remove the old switch and disconnect the wires, please make sure that there is about 5mm of bare wire exposing.

86_curtain_2L_step1

2

Insert a small, flat screwdriver in notches on wall plate and twist gently to pry from frame to remove wall plate.

86_curtain_2L_step2

3

Connect the wires to the switch case. Make sure that the wires are secure

warning

Warning

To reduce risk of electrical shock, unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.


4

For further details about the installation of motors, please refer to the user manual of curtain motor/roller motor.


5

Fasten the switch on wall by placing the proper wall mount components.

86_curtain_2L_step5

6

Turn on the circuit breaker and connect to the power.


7

Test your switch by pressing several times. Your curtain/roller will be pulled open/down or shut.

86_curtain_2L_step7

8

Snap wall plate to frame. There are four click-stops for adjusting the fit of the wall plate to the switch and the wall.

86_curtain_2L_step8

Installation complete.

Download the Yoswit App to your smart device and enjoy it now!

Yoswit will automatically detect the switch and add to your device list.

Download
Certification CE EMC CE LVD FCC RoHS
User Manual Download
Data Sheet Download
Leaflet Smart Light Switch Full Catalogue
Yoswit App qrcode_androidqrcode_ios
Yoswit App (Android Apk) Download
